ISO 4033 Hexagon High Nuts Dimensions
Taller-Profile Metric Hex Nuts for Superior Thread Engagement in High-Tension and Fine-Pitch Bolted Assemblies.
ISO 4033 Hexagon High Nuts are metric-series internally threaded fasteners with a taller body height than standard ISO 4032 regular hexagon nuts, providing greater thread engagement length which increases the stripping strength of the bolted joint and makes them particularly suitable for use in applications where fine-pitched threads, soft base materials, or high-tension bolting demand more thread engagement than a standard nut height can offer. ISO 4033 defines dimensional requirements for high hexagon nuts in property classes 8, 10, and 12, covering width across flats, width across corners, nut height, thread pitch, and chamfer dimensions for all standard metric sizes — ensuring full dimensional interchangeability across global nut suppliers. These hexagon high nuts are manufactured to ASTM A1082, the specification for high-strength stainless steel bolting material, providing superior corrosion resistance, excellent mechanical performance, and non-magnetic properties where required — making them the preferred choice for chemical processing equipment, marine structures, food and beverage processing machinery, water treatment plants, and pharmaceutical facilities where hygiene and corrosion resistance are mandatory requirements. The ISO 4033 high nut is widely used in combination with ISO 4014 and ISO 4017 metric hex bolts and hex cap screws in assemblies where full thread utilization and reliable anti-loosening performance are key design requirements. Pairing ISO 4033 dimensional compliance with ASTM A1082 material requirements gives engineers a fully defined, high-performance metric nut specification for critical corrosion-resistant service.

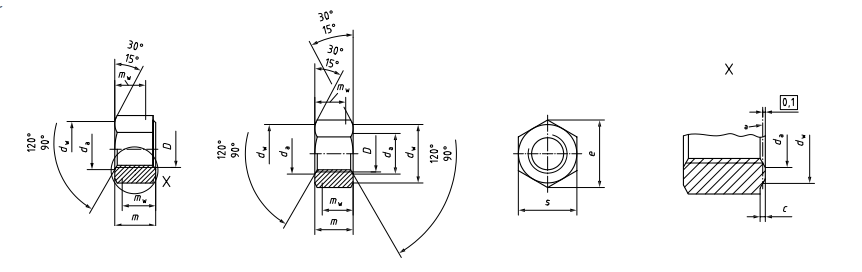

ISO 4033 Hexagon High Nuts - Style 2 Dimensions
| Nominal Size | c | da | e | s | m | Weight Per Pc (H=D) | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| Max | Min | Max | Min | Min | Max | Min | Max | Min | ||
| M1.6 | 0.2 | 0.1 | 2.42 | 2 | 3.41 | 3.2 | 3.02 | - | - | - |
| M2 | 0.2 | 0.1 | 3.07 | 2.5 | 4.32 | 4 | 3.82 | - | - | - |
| M2.5 | 0.3 | 0.1 | 4.07 | 3.5 | 5.45 | 5 | 4.82 | - | - | - |
| M3 | 0.4 | 0.15 | 4.57 | 4 | 6.01 | 5.5 | 5.32 | - | - | - |
| M4 | 0.4 | 0.15 | 5.88 | 5 | 7.66 | 7 | 6.78 | - | - | - |
| M5 | 0.5 | 0.15 | 6.88 | 6 | 8.79 | 8 | 7.78 | 5.10 | 4.80 | - |
| M6 | 0.50 | 0.15 | 6.75 | 6.00 | 11.05 | 10.00 | 9.78 | 5.70 | 5.40 | 0.0028 |
| M8 | 0.60 | 0.15 | 8.75 | 8.00 | 14.38 | 13.00 | 12.73 | 7.50 | 7.14 | 0.0057 |
| M10 | 0.60 | 0.15 | 10.80 | 10.00 | 17.77 | 16.00 | 15.73 | 9.30 | 8.94 | 0.0126 |
| M12 | 0.60 | 0.15 | 13.00 | 12.00 | 20.03 | 18.00 | 17.73 | 12.00 | 11.57 | 0.0181 |
| M14 | 0.60 | 0.15 | 15.10 | 14.00 | 23.36 | 21.00 | 20.67 | 14.10 | 13.40 | 0.0300 |
| M16 | 0.80 | 0.20 | 17.30 | 16.00 | 26.75 | 24.00 | 23.67 | 16.40 | 15.70 | 0.0374 |
| M18 | 0.80 | 0.20 | 19.50 | 18.00 | 29.56 | 27.00 | 26.16 | 17.60 | 16.90 | 0.0522 |
| M20 | 0.80 | 0.20 | 21.60 | 20.00 | 32.95 | 30.00 | 29.16 | 20.30 | 19.00 | 0.0734 |
| M22 | 0.80 | 0.20 | 23.70 | 22.00 | 37.29 | 34.00 | 33.00 | 21.80 | 20.50 | 0.0880 |
| M24 | 0.80 | 0.20 | 25.90 | 24.00 | 39.55 | 36.00 | 35.00 | 23.90 | 22.60 | 0.1242 |
| M27 | 0.80 | 0.20 | 29.10 | 27.00 | 45.20 | 41.00 | 40.00 | 26.70 | 25.40 | 0.1770 |
| M30 | 0.80 | 0.20 | 32.40 | 30.00 | 50.85 | 46.00 | 45.00 | 28.60 | 27.30 | 0.2528 |
| M33 | 0.80 | 0.20 | 35.60 | 33.00 | 55.37 | 50.00 | 49.00 | 32.50 | 30.90 | 0.3280 |
| M36 | 0.80 | 0.20 | 38.90 | 36.00 | 60.79 | 55.00 | 53.80 | 34.70 | 33.10 | 0.4452 |
| M39 | 1.00 | 0.30 | 42.10 | 39.00 | 66.44 | 60.00 | 58.80 | 37.50 | 35.90 | 0.5885 |
| M42 | 1.00 | 0.30 | 45.40 | 42.00 | 71.30 | 65.00 | 63.10 | - | - | 0.7298 |
| M45 | 1.00 | 0.30 | 48.60 | 45.00 | 76.95 | 70.00 | 68.10 | - | - | 0.9410 |
| M48 | 1.00 | 0.30 | 51.80 | 48.00 | 82.60 | 75.00 | 73.10 | - | - | 1.1354 |
| M52 | 1.00 | 0.30 | 56.20 | 52.00 | 88.25 | 80.00 | 78.10 | - | - | 1.3930 |
| M56 | 1.00 | 0.30 | 60.50 | 56.00 | 93.56 | 85.00 | 82.80 | - | - | 1.6460 |
| M60 | 1.00 | 0.30 | 64.80 | 60.00 | 99.21 | 90.00 | 87.80 | - | - | 1.9688 |
| M64 | 1.00 | 0.30 | 69.10 | 64.00 | 104.86 | 95.00 | 92.80 | - | - | 2.2827 |
Frequently Asked Questions
What stainless steel grades does ASTM A1082 cover for din 6330?
ASTM A1082 covers duplex grades (S31803/2205, S32205/2205, S32750/2507, S32760/Zeron 100, S39277/AL-6XN) and precipitation-hardening grades (S17400/17-4 PH, S17700/17-7 PH, S15700/15-7 PH, S35500/AM-355) - all available for this product family at TorqBolt.
What is the standard dimensional reference for these din 6330?
This product follows ISO 4033, the dimensional standard for din 6330 in stainless steel. Material chemistry, mechanical properties and heat treatment follow ASTM A1082/A1082M. TorqBolt supplies both inch-series and metric sizes per the applicable ASME or ISO drawing.
Are A1082 din 6330 suitable for sour service (NACE MR0175)?
Yes, with hardness control. NACE MR0175 / ISO 15156 permits duplex grades S31803, S32205, S32750, S32760 at 28 HRC max for sour service. 17-4 PH (S17400) at H1150 condition (28 HRC) is the most common PH grade qualified for sour service. TorqBolt provides NACE-MR0175 compliant heat-treat reports.
What is the typical strength of A1082 super-duplex 2507 (S32750) din 6330?
Super-duplex 2507 (S32750) per A1082: tensile 116 ksi (800 MPa) min, yield 80 ksi (550 MPa) min, elongation 15% min, 32 HRC max. PREN ≈ 42 - suitable for seawater, brine and chloride-rich pressure-vessel service. Higher strength than austenitic A193 B8M while offering pitting resistance well above 304/316.
References & Standards
- ASTM A1082 / A1082M - Standard Specification for High-Strength Precipitation-Hardening and Duplex Stainless Steel Bolting for Special-Purpose Applications (current edition 2016, active)
- ASTM A962 / A962M - General Requirements for Special-Purpose Bolting Materials
- ASTM A370 - Mechanical Testing of Steel Products
- NACE MR0175 / ISO 15156 - Sour-service hardness limits for petroleum & natural gas industries
- ASME B18 series - Dimensional standards for bolts, screws, nuts, studs
- ISO 4032 / 4033 / 4035 - Metric hexagon nut dimensional standards
